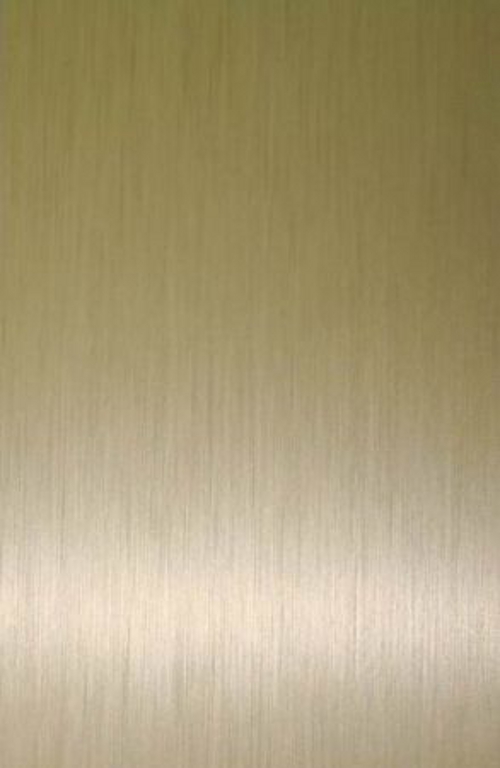

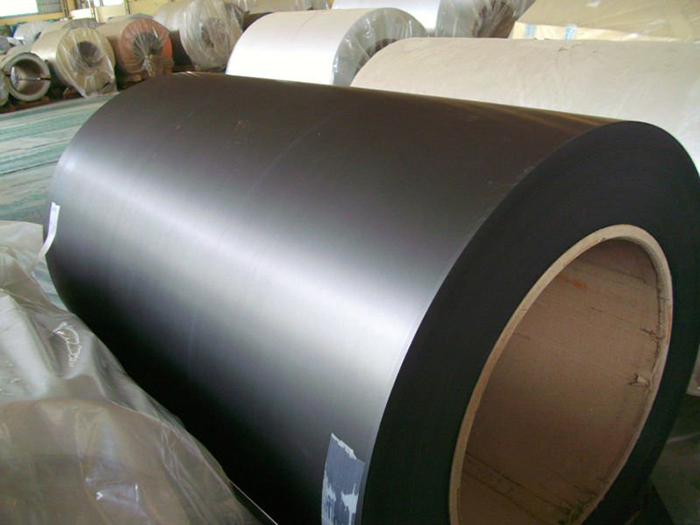

5005 Anodised Aluminum Coil Sheet
SigniSatin Finish Anodized Aluminum coil sheet isproduced from the anodised quality 5005.F high purity aluminum coil sheet. The satin finish is a perfect combination of silkiness look and metallic luster. It’s the best selection for the architectural facade materials due to the high surface metallic luster, small difference between longitudinal and transverse luster, and it has a high degree of uniformity in different batches of products And Signi High strength satin finish anodized aluminum coil sheet is the high-end product in Signi architectural anodized aluimium product line,the strength of thickness 2.0mmSigni High strength satin finish anodized aluminum coil sheet is equivalent to the thickness 3.0mm common domestic aluminum coil sheet.With its excellent strength performance and high-grade surface quality, make it can meet the strict requirements of modern architecture.The specially-designed alloy composition of the high-strength anodized aluminum always shows high-grade and unique metal apperance both in large-sized outdoor facades and indoor decorations
The advantages of Signi5005 Anodised aluminum coil sheet
• Top-grade quality. Refined, luxurious and sparky surface
• Unique finish
• Low proportion, only 1/3 of stainless steel weight and easy for further fabrication
• Sapphire grade surface hardness for scratching resistance
• Environmental friendly material
• Anti-interference, shield electromagnetic wave
• High thermal conductivity, which perfectly for electronic device
• High finger print resistance and do not attract dust
• The oxidizing layer will not crach, peel off or flake
• Multiple colours can provide unlimited possibilities for device design
• Simplified flow, high yield productivity, cost saving
Chemical Properties -5005 Anodised aluminum coil sheet
Mechanical properties of Signi Satin Finish Anodized Aluminum coil sheet
are in complicance with EN485-2 standard
Bend radius 90°of Signi Satin Finish Anodized Aluminum coil sheet:
Chemical Properties -Signi High strength satin finish anodized aluminum coil sheet
Refer to EN573-3standard

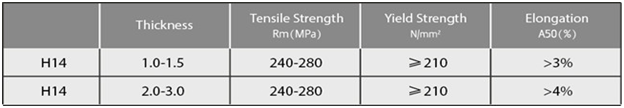

Mechanical Property:Signi High strength satin finish anodized aluminum coil sheet
are in complicance with EN485-2 standard
SigniSatin Finish Anodized Aluminum coil sheet isproduced from the anodised quality 5005.F high purity aluminum coil sheet. The satin finish is a perfect combination of silkiness look and metallic luster. It’s the best selection for the architectural facade materials due to the high surface metallic luster, small difference between longitudinal and transverse luster, and it has a high degree of uniformity in different batches of products And Signi High strength satin finish anodized aluminum coil sheet is the high-end product in Signi architectural anodized aluimium product line,the strength of thickness 2.0mmSigni High strength satin finish anodized aluminum coil sheet is equivalent to the thickness 3.0mm common domestic aluminum coil sheet.With its excellent strength performance and high-grade surface quality, make it can meet the strict requirements of modern architecture.The specially-designed alloy composition of the high-strength anodized aluminum always shows high-grade and unique metal apperance both in large-sized outdoor facades and indoor decorations
The advantages of Signi5005 Anodised aluminum coil sheet
• Top-grade quality. Refined, luxurious and sparky surface
• Unique finish
• Low proportion, only 1/3 of stainless steel weight and easy for further fabrication
• Sapphire grade surface hardness for scratching resistance
• Environmental friendly material
• Anti-interference, shield electromagnetic wave
• High thermal conductivity, which perfectly for electronic device
• High finger print resistance and do not attract dust
• The oxidizing layer will not crach, peel off or flake
• Multiple colours can provide unlimited possibilities for device design
• Simplified flow, high yield productivity, cost saving
Chemical Properties -5005 Anodised aluminum coil sheet
| Alloy Designation | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Remarks | Others |
Aluminium min |
||
| Numerical | Chemical Sympols | Each | Total | |||||||||||||
|
EN AW -5005 |
EN AW- Al-Mg1(B) |
0.3 | 0.7 | 0.20 | 0.20 | 0.50-1.1 | 0.10 | - | 0.25 | - | - | - | - | 0.05 | 0.15 | Remainder |

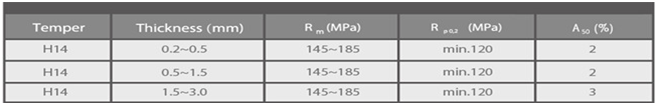

Mechanical properties of Signi Satin Finish Anodized Aluminum coil sheet
are in complicance with EN485-2 standard
Bend radius 90°of Signi Satin Finish Anodized Aluminum coil sheet:
Chemical Properties -Signi High strength satin finish anodized aluminum coil sheet
Refer to EN573-3standard
Mechanical Property:Signi High strength satin finish anodized aluminum coil sheet
are in complicance with EN485-2 standard
| Specification-5005 Anodised aluminum coil sheet | |||||||
| Alloy | Temper |
Thickness (mm) |
Thickness Tolerance |
Width (mm) |
Width Tolerance |
Length (mm) |
Length Tolerance |
| 5005 |
F H14, etc |
≤3 | Thickness tolerance is according to EN485-4 Standard | ≤1520 |
Width Tolerance is according to EN485-4 Standard |
800-- 2600 |
Length tolerance is according to EN485-4 Standard |
| Anodized aluminum film: | ≤20um, or as customer’s request | ||||||
| Surface: | Satin Finish,Brilliant Finish, Matt Finish,Lumenal Matt, Semi Specular, Erotex, Stucco Finish, etc. | ||||||
| Colors: | Nature,Champagne,Gold,Grey,Bronze,Dark Bronze,Black,etc | ||||||
| Application | Curtain wall,outdoor facades,indoor decorations,Consumer Electron,Home Appliances,etc. | ||||||
| Mechanical properties are in complicance with EN485-2 standard | |||||||
